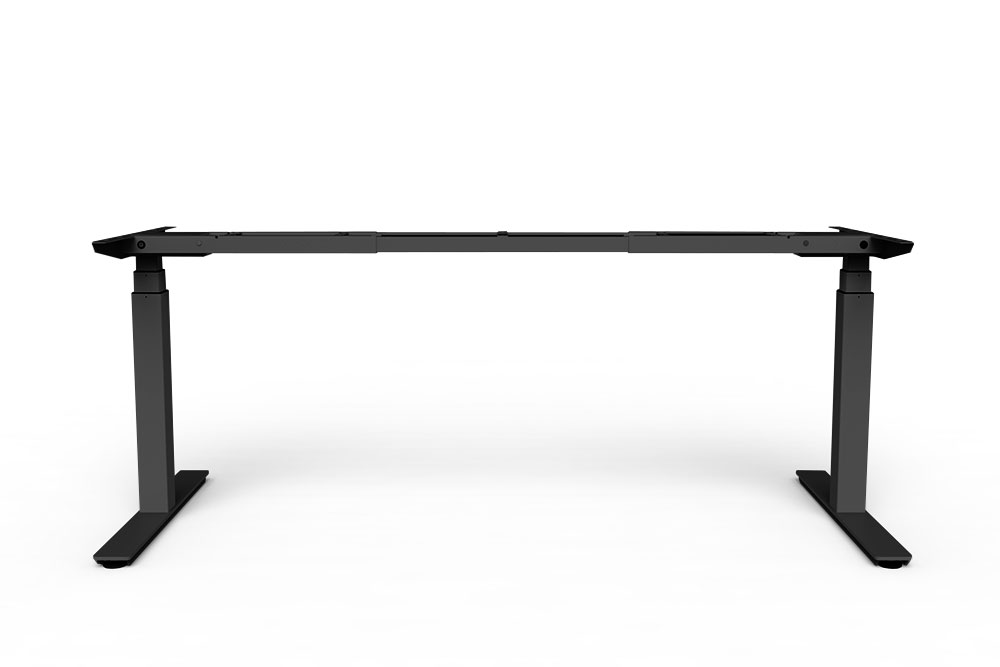

Table frame, electric, height from 675-1175mm - desk / 3-tier, RAL 9005
Table frame, electric, height from 675-1175mm - desk / 3-tier, RAL 9005
Price on request
Available in 21 days, + delivery time 2-5 days
Product number:
700200/HV-B/2
EAN:
4030177090562
Model 700200/HV electric, infinitely height adjustable table frame, adjustment range from: 675 - 1175 mm (without table top), including push button with 2 side runners and holding frame. Frame is shipped in smallest packaging size. Suitable for table tops from 1200x800mm to 2000x800mm. Holding frame: adjustable in length 1165-1960mm. Stand tubes: 3-stage lifting columns, square 50x50/60x60/70x70mm. Skids (foot stabilizers): 750x80x30mm. Technical data: 2 lifting columns each 785 N Adjustment speed approx. 38mm/sec. drive volume approx. 39 dB load capacity static and dynamic each 80kg/lifting column=160kg/frame Execution: steel, powder coated according to RAL 9005
Technical data
| Colour: | 9005 |
|---|---|
| Height: | 675 mm |
| Surface: | Beschichtet |
| Total depth: | 750 mm |
| Total width: | 1165 mm |
| Height adjustment: | electric |
| Article group: | Desk frames |
